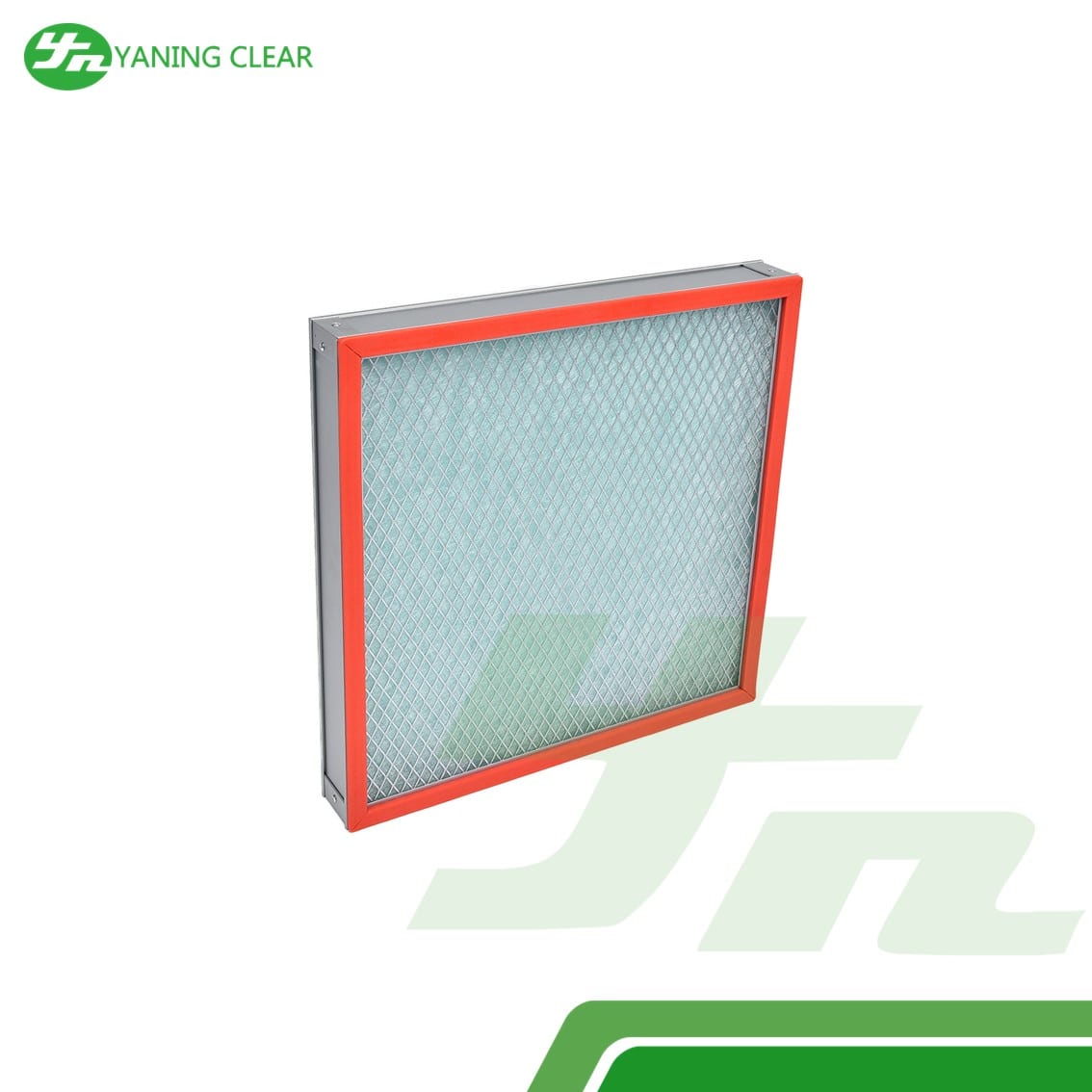

Pre Air Filter
|
Name:
|
High Temperature Resistance Pre-filter
|
Material:
|
High Temperature Fiber
|
|
Efficiency:
|
G4
|
Size:
|
595*595*24MM Or Customize
|
|
Construction:
|
Panel Filter
|
Filtration Grade:
|
Primary Filter For High Temperature Clean Area
|
|
Frame:
|
Aluminum Alloy
|
The flame and high temperature resistant HEPA filter uses deep pleat design, the corrugated structure can accurately maintain the pleat spacing and maximize the use of filter media with minimum resistance. The filter medium has 180-degree pleats on both sides, the two indentations when the filter material is bent make it open into a wedge layer at the end of the separator and prevent the filter material from being damaged.
Filter Medium and Frame Material
Filter Medium:H13-H14 glass fiber, U15-U17 American HV glass fiber;
Frame Material: Aluminum profile, aluminum plate, galvanized sheet, stainless steel frame can be selected below 250 Celsius. Above 250 Celsius, stainless steel frame must be used.
Sealing strip: PTFE strip
(350~400 Celsius);The filter size is made according to the actual requirements of customers.
Advantages
Metal mesh support at downstream, with strengthening cross together “V” shape of stainless steel wire designed at the upstream, user can replace the material very easy ,the frame can be reused.
Filter media and frame bonded by adhesive, can ensure no bypass or leakage even under large air flow.
Hasp available, if needed by installation type.
Product Parameter
| Model | Dimension
(W*D*H)mm
|
Air Volumem³/h | Filtration Area(㎡) |
Dust Holding Capacity(g) |
Initial Pressure(Pa) |
Final Pressure(Pa) |
Filtration Efficiency |
| YN-HHF-001 | 484*484*120 | 450 | 4.3 | 250 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-002 |
610*610*120
|
750 | 6.9 | 400 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-003 | 915*610*120 | 1100 | 10.4 | 600 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-004 |
484*484*150
|
600 | 5.85 | 350 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-005 |
610*610*150
|
1000 | 14.19 | 550 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-006 |
915*610*150
|
1500 | 9.22 | 850 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-007 |
484*484*220
|
1000 | 14.8 | 550 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-008 |
630*630*220
|
1500 | 9.22 | 850 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-009 |
915*610*220
|
2500 | 22.35 | 1300 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| YN-HHF-0010 |
1220*610*220
|
2700 | 24.34 | 1500 | ≤200 | 400 | H13-H14 (99.95%~ 99.995%) |
| Outside Dimensions(mm) | Rated air flow(m3/h) | Initial
resistance(Pa) |
efficiency class | filter media | |
| 295*295*10/20mm 12″*12″*1/2″/1″ |
8oom3/h | 25pa | 40% | G1
G2 G3 |
Non-woven reinforced cotton & synthetic media &glass fiber |
| 495*295*10/20mm 20″*12″*1/2″/1 |
1300m3/h | ||||
| 495*495*10/20mm 20″×20″×1/2″/1″ |
2200m3/h | ||||
| 595*295*10/20mm 24″×12″×1/2″/1″ |
1600m3/h | ||||
| 595*295*10/20mm 24″*12″*1/2″/1″ |
1600m3/h | ||||
| 595*595*10/20mm24″*24″*1/2″/1″ | 1600m3/h | ||||
