FFU Fan Filter Unit

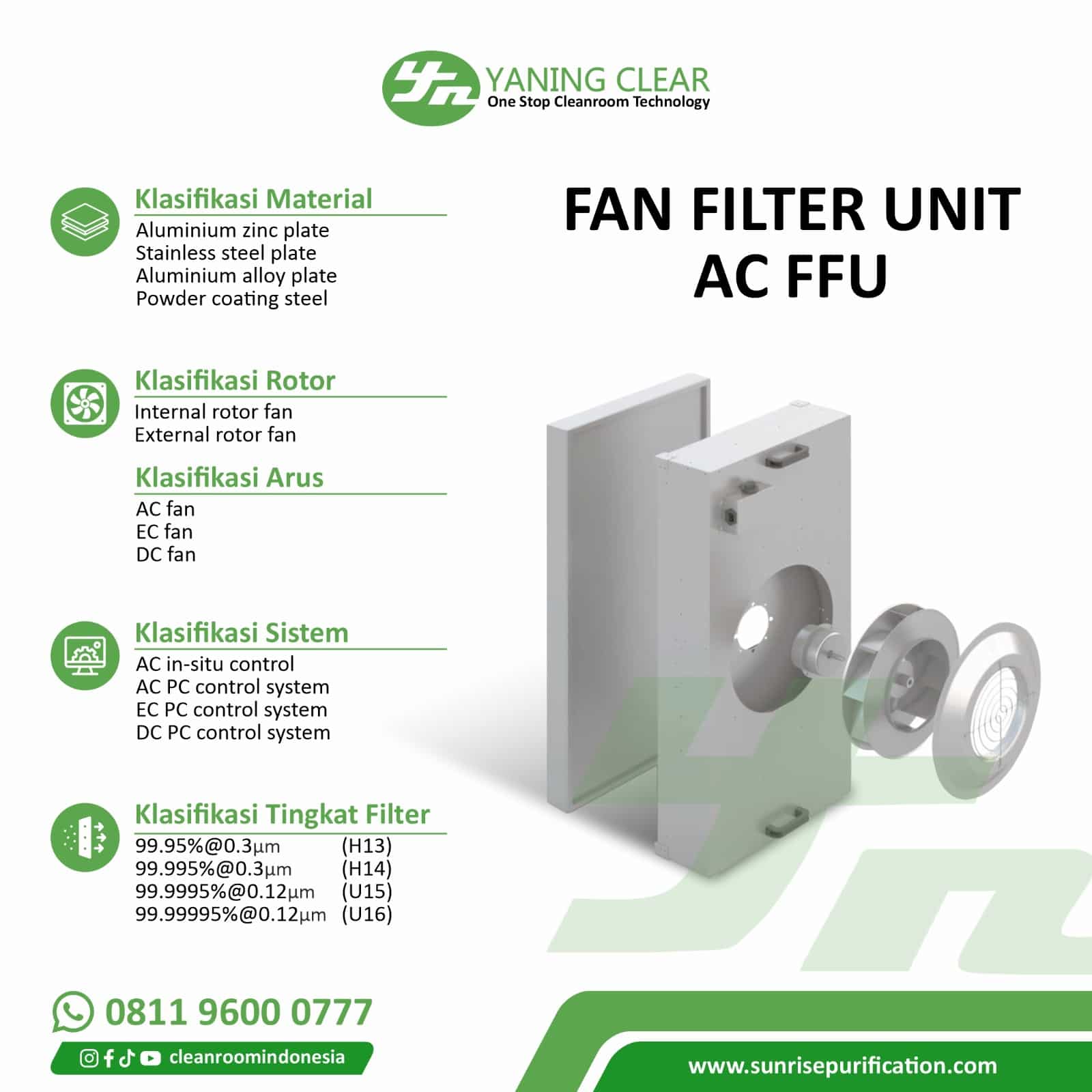

Material Classification
- Aluminum zinc plate
- Stainless steel plate
- Aluminum alloy plate
- Powder coating steel
Rotor Classification
- Internal rotor fan
- External rotor fan
Current Classification
- AC fan
- EC fan
- DC fan
System Classification
- AC in-situ control
- AC PC control system
- EC PC control system
- DC PC control system
Filter Level Classification
- 99.95%@0.3μm(H13)
- 99.995%@0.3μm(H14)
- 99.9995%@0.12μm(U15)
- 99.99995%@0.12μm(U16)
A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or micro-environments by removing harmful airborne particles from recirculating air.
FFU is abbreviation of Fan Filter Unit. It is a modular terminal air supply device with its own power and filtering effect. Its main function is to inhale the air from the top of the FFU by the fan and filter it by HEPA, and the filtered clean air is evenly sent out at the air velocity of 0.45m/s+20% on the entire air outlet surface to meet the cleanliness requirements of the clean environment. It is mainly installed on ceiling keels and equipment machines in clean areas and working areas. It is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, and automobiles, hospitals, food, spraying, printing and other fields.
FFU Features:
- Complete module consisting of frame, HEPA filter and special equipped fan.
- Frame made of stainless steel, powder-coated steel, galvanized sheets.
- Customer-specific fastenings can be attached to the outer frame.
- Large air flow volume thanks to powerful fans.
- With Differential Pressure Buzzer / Filter Replacement Alarm to indicate the time to replace HEPA filter.

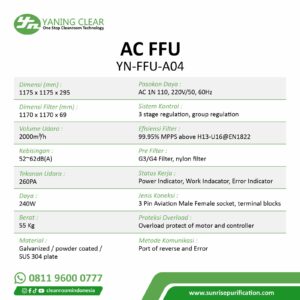

Product Details:
| Product Name | AC FFU | |||
| Product Model | YN-FFU-A01 | YN-FFU-A02 | YN-FFU-A03 | YN-FFU-A04 |
| Dimension(mm) | 575*575*220 | 575*1175*220 | 875*1175*275 | 1175*1175*295 |
| Filter Dimension(mm) | 570*570*69 | 570*1170*69 | 870*1170*69 | 1170*1170*69 |
| Air Volume | 500m³/h | 1000m³/h | 1500m³/h | 2000m³/h |
| Noise | 52~62dB(A) | 52~62dB(A) | 52~62dB(A) | 52~62dB(A) |
| Air Pressure | 200PA | 200PA | 260PA | 290PA |
| Power | 170W | 170W | 200W | 240W |
| Weight | 28Kg | 35Kg | 47Kg | 55Kg |
| Materia | Galvanized/powder coated/SUS 304 plate | |||
| Control System | AC 1N 110, 220V/50,60Hz | |||
| Filter Efficiency | 3 stage regulation, group regulation | |||
| Pre Filter | 99.95%MPPS above H13-U16@EN1822 | |||
| Work Status | G3/G4 Filter, nylon filter | |||
| Connection Type | Power Indicator, work indicator, Error indicator | |||
| Overload Protection | 3 Pin Aviation Male Female socket, terminal blocks | |||
| Monitor Contact | Overload protect of motor and controller | |||
| Communication Method | Port of reserve and Error | |||
- Spesifikasi menyesuaikan kebutuhan ruang bersih Anda
- Didampingi tim teknis dari perencanaan sampai pemasangan
- Penawaran resmi dengan rincian spesifikasi lengkap
